LIG Township @ 0.6 million sq.ft. for Mahindra Lifespaces


Client: Mahindra Life Space


Built-up Area: 6,39,000 sq.ft.

Architect: Sangath-Vastu Shilpa

About Project:

Consists of 10 Cluster and Club House.

Ground + 4 floors [all residential typical floors] Configuration of residential typical floors with:

1RK, 1 BHK & 2 BHK Flats.

Club House consist Swimming pool, Gym, Changing room, Kids play room etc.


Key Feature:

Storm water drainage design to maintain a level inside the plot. As per the contoor plan topology of the plot is 0 to 2 meter below from the main external road. Hence, no level difference between Storm water drainage outlet & external storm water drainage nalla.

In such condition outside rain water would enter plot during rainy season.


Acute calculations lead to an efficiently working system incl. Storm water drainage level in reverse direction with a slope 1:500 instead of 1:300 as per site condition. Maintain level difference between internal & external Storm water drainage line is minimum 500mm.


Summary of technical details:


Electrical [for all cluster]:

Total Connected Load: 5,399 kW

Maximum Demand Load: 1,777 kW

Transformer Configuration: 630 kVA x 4nos.


Plumbing:

Underground Tanks:

Overhead Tanks:

Common STP Capacity: 563 kLD

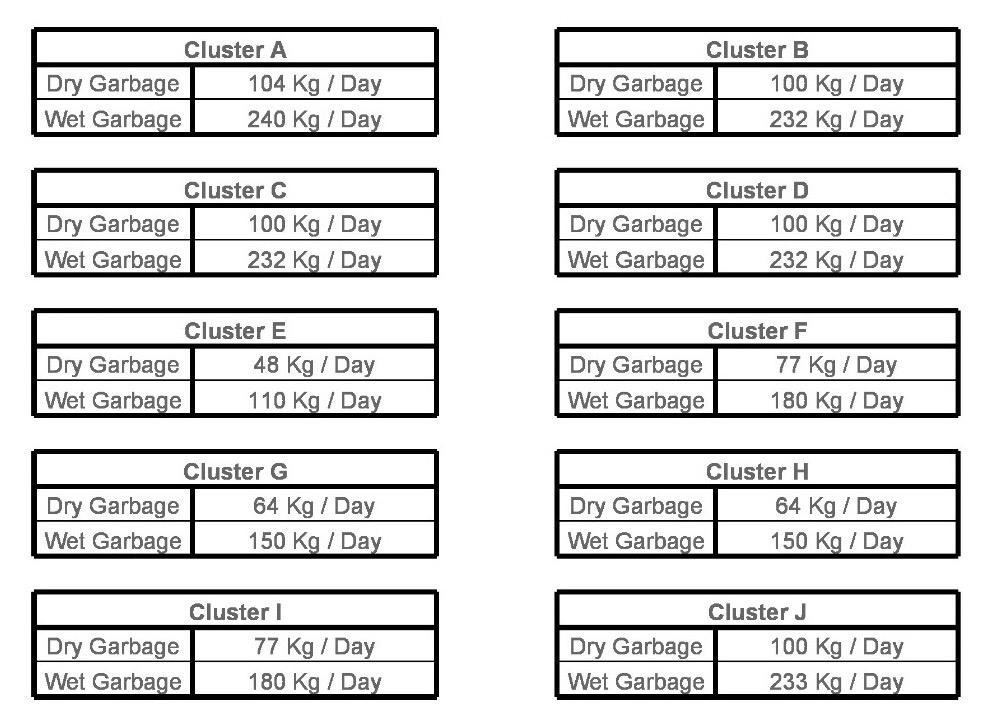

Solid Waste Generation:

Fire Fighting System:

Hydrant system at ground floor boundary periphery of all cluster.
